Epson R-D1: Total stripdown


The shutter in this Epson R-D1 failed and would not cock, but Steve’s Camera Service Center in the USA was able to repair it: the camera is now working perfectly. The failure was mechanical, and no parts were required.

The photographs are actually in reverse order  they are of assembly not disassembly  but I thought it would be more helpful shown this way.

Clicking on a thumbnail will open a larger photograph in a new window.

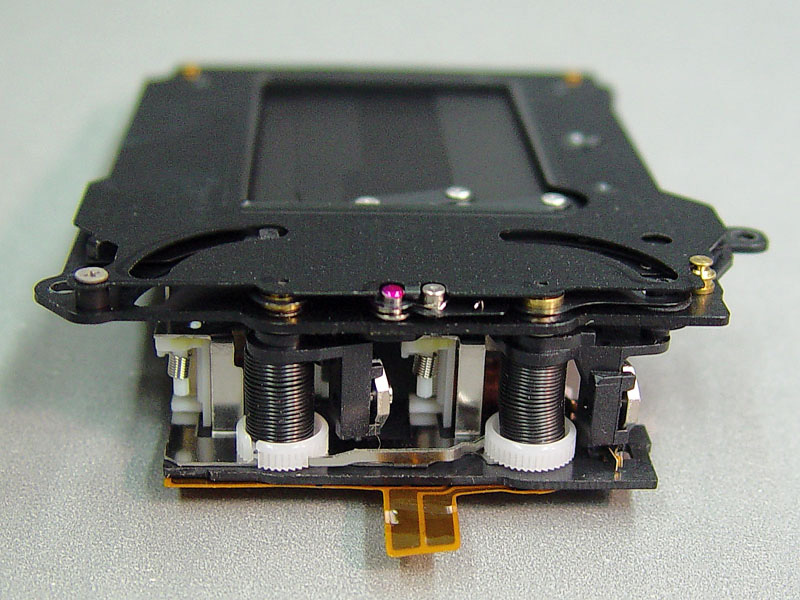

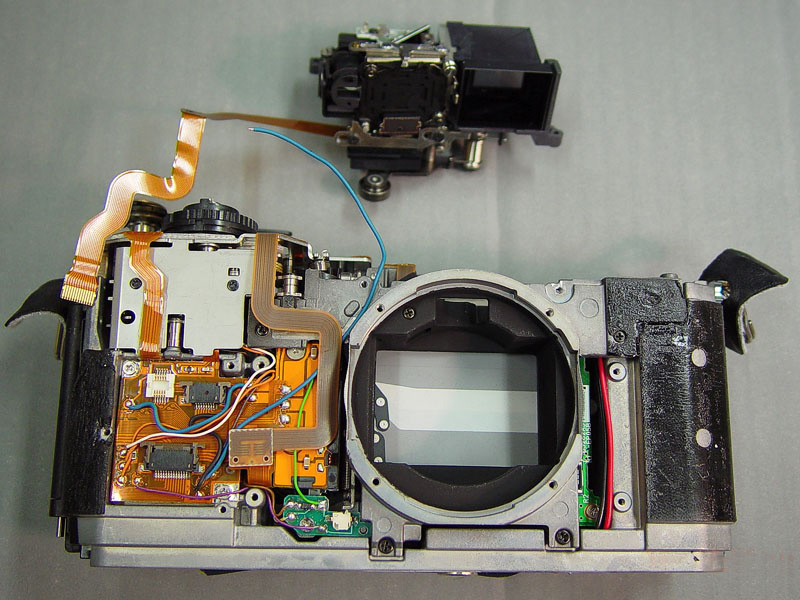

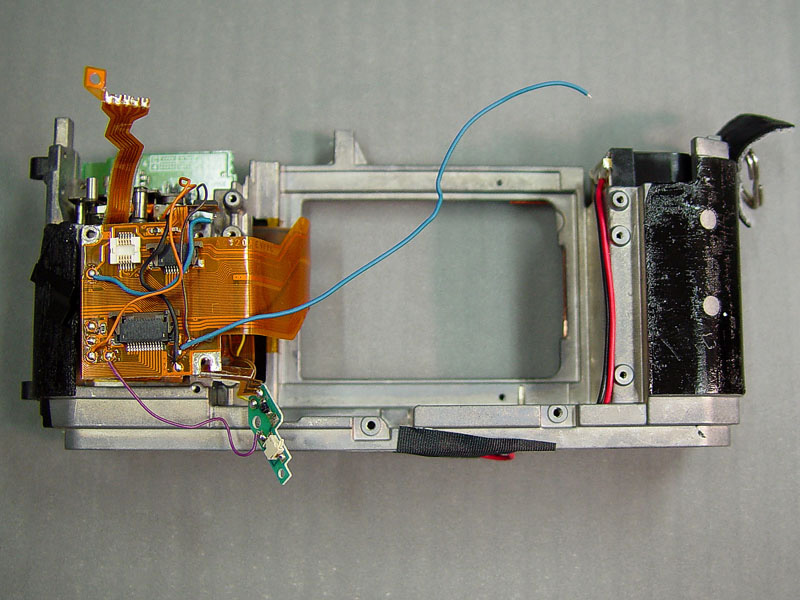

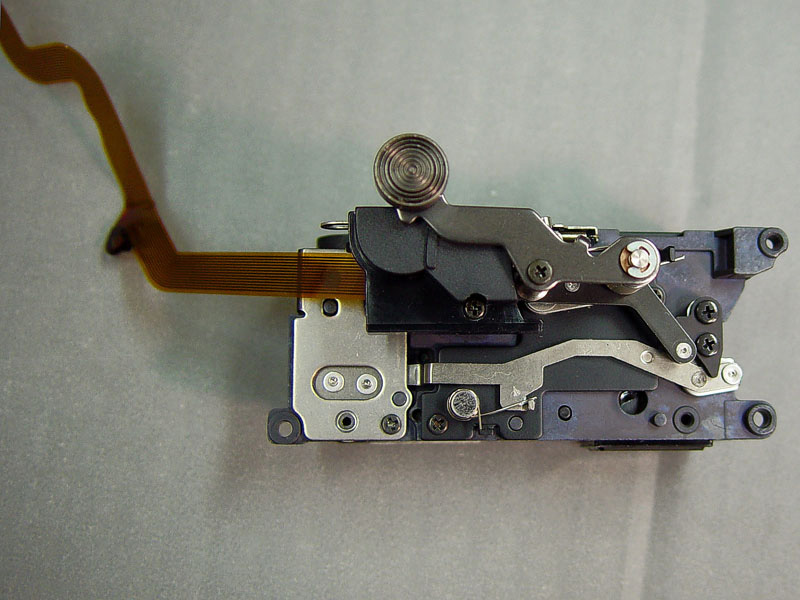

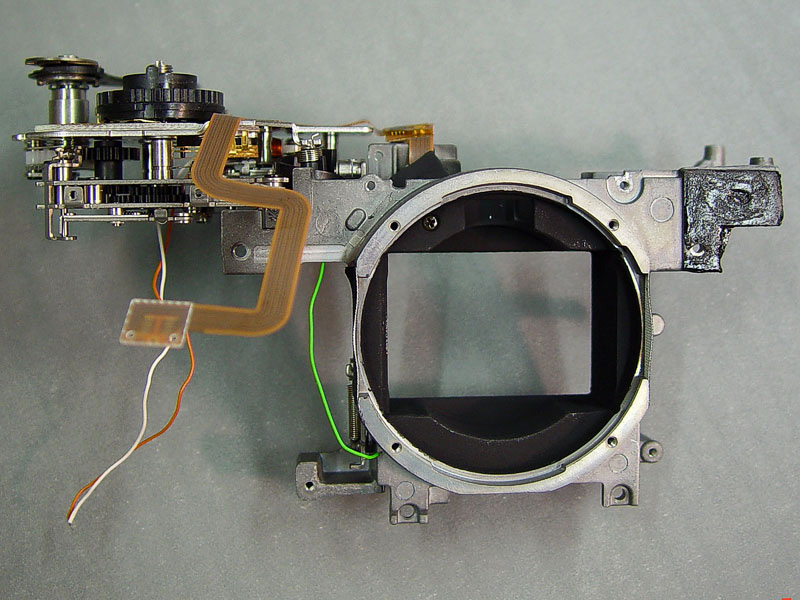

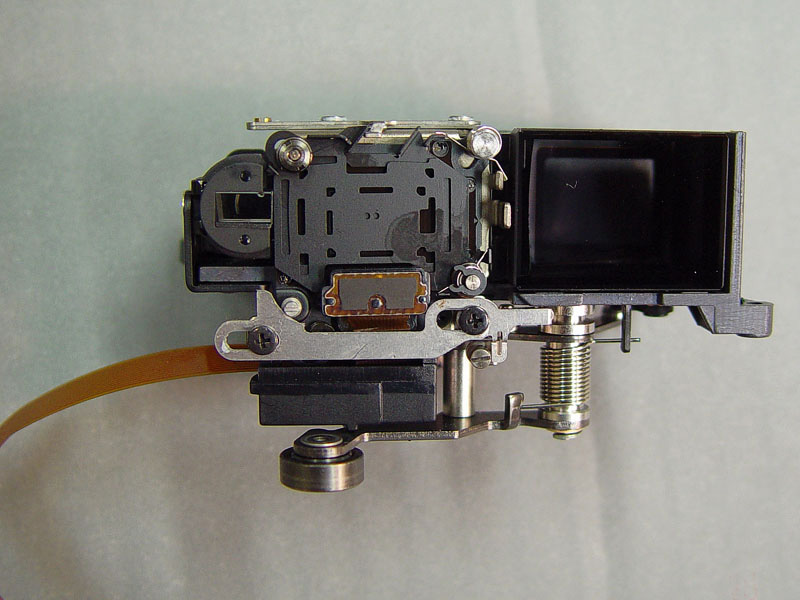

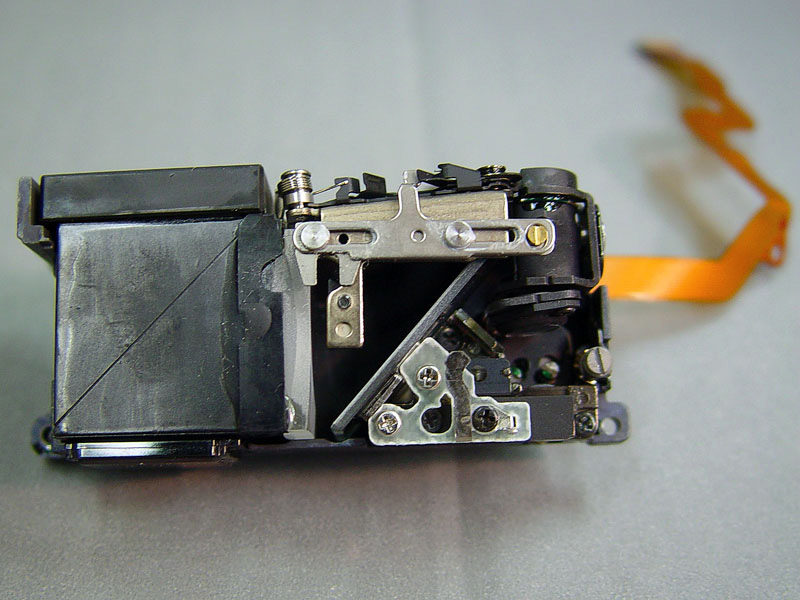

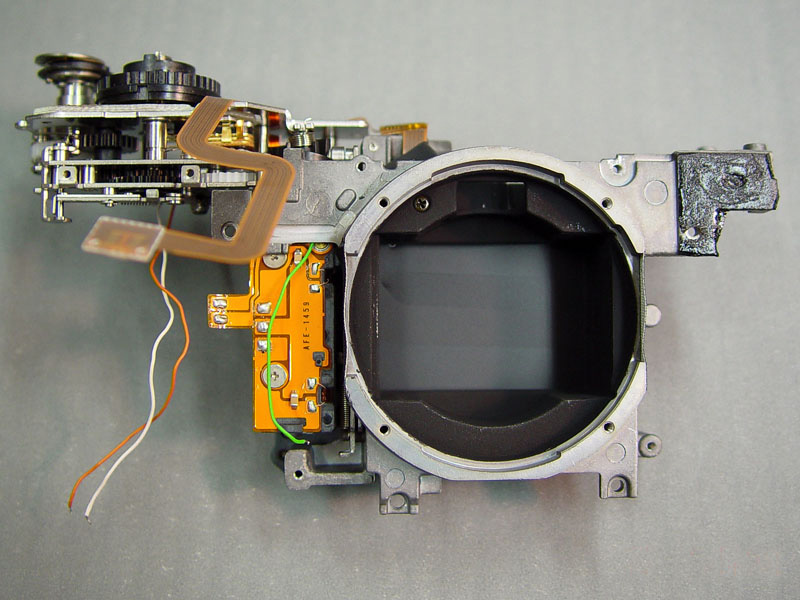

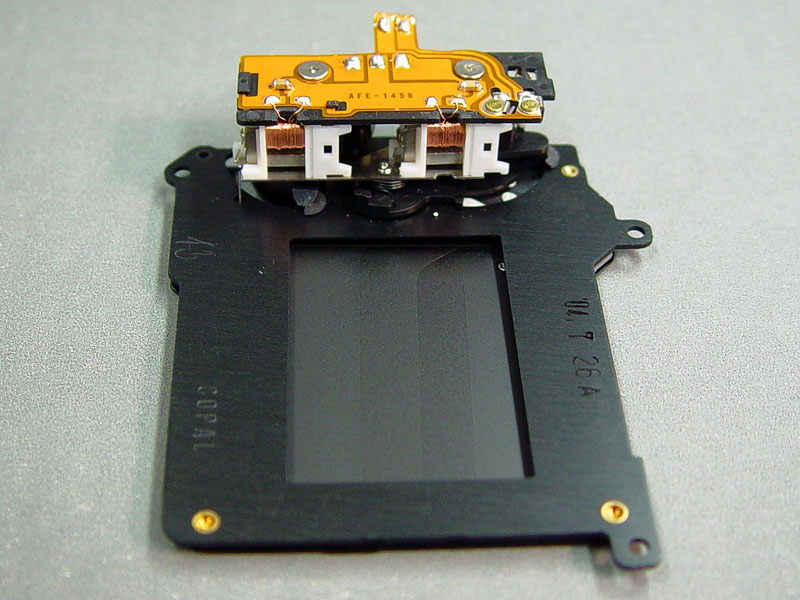

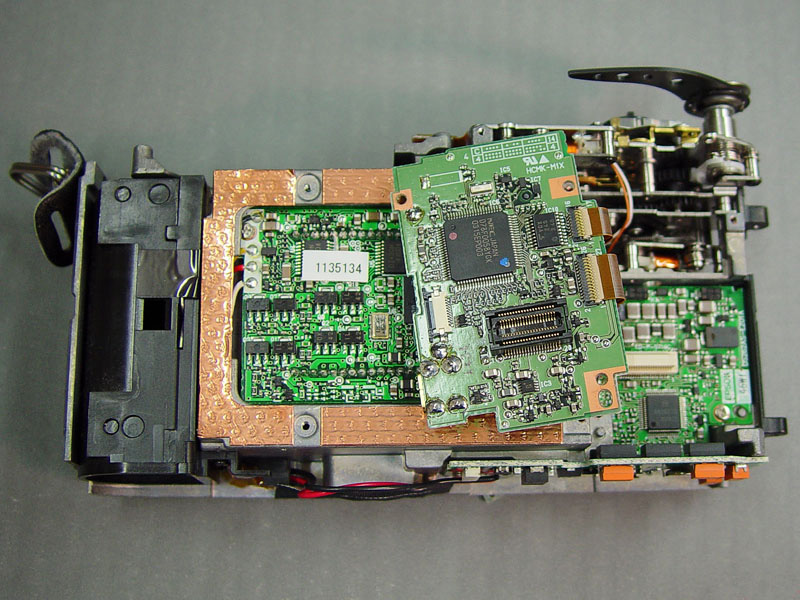

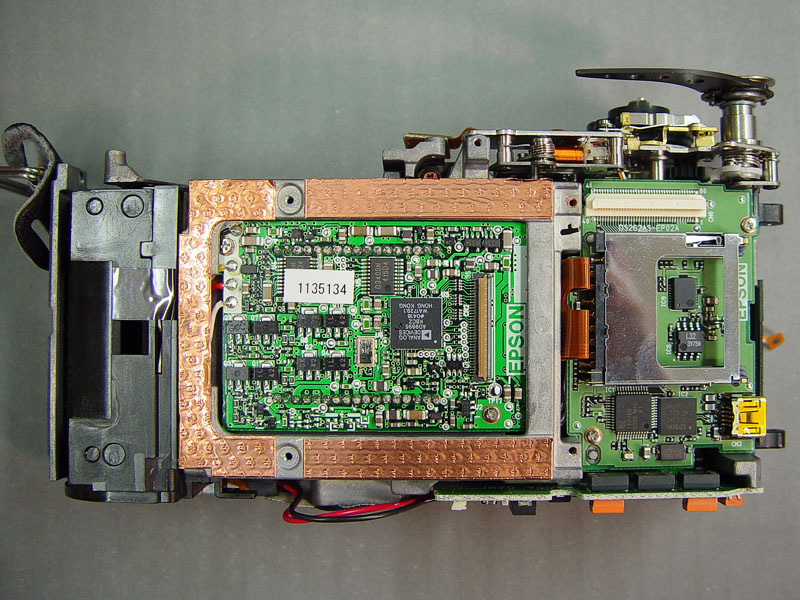

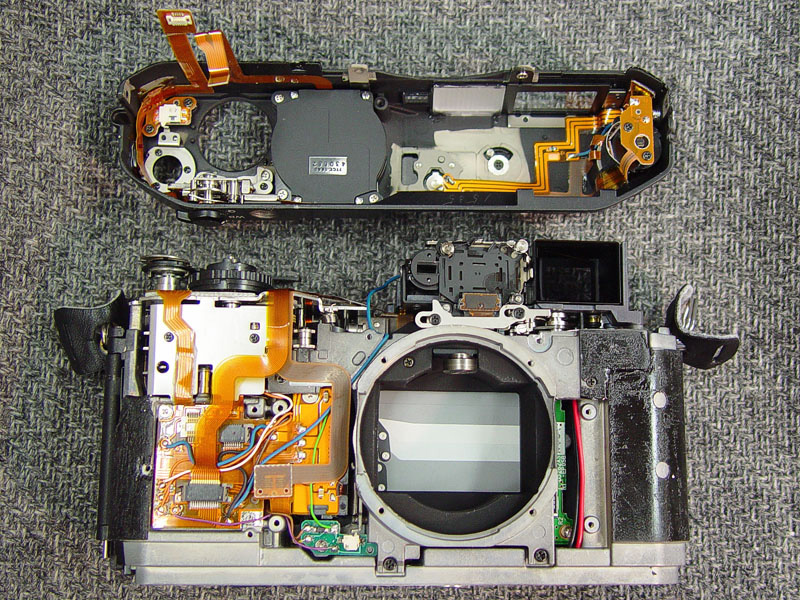

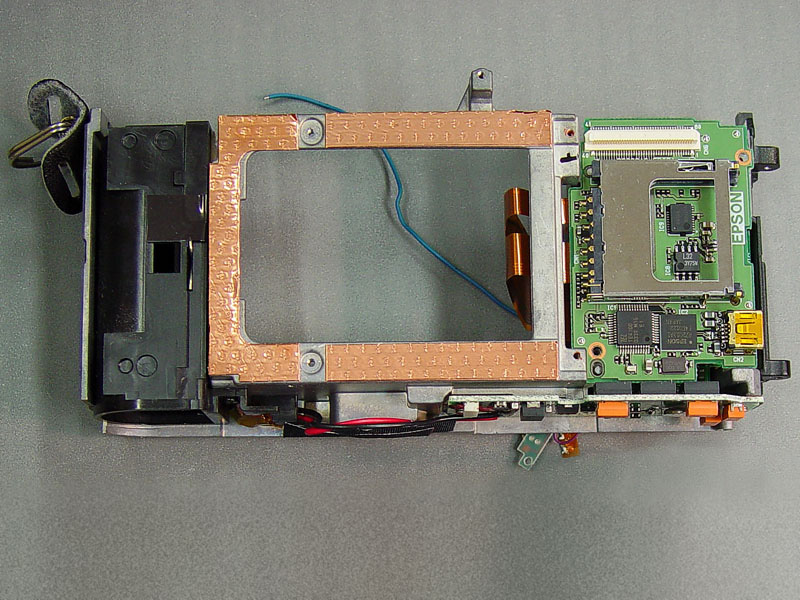

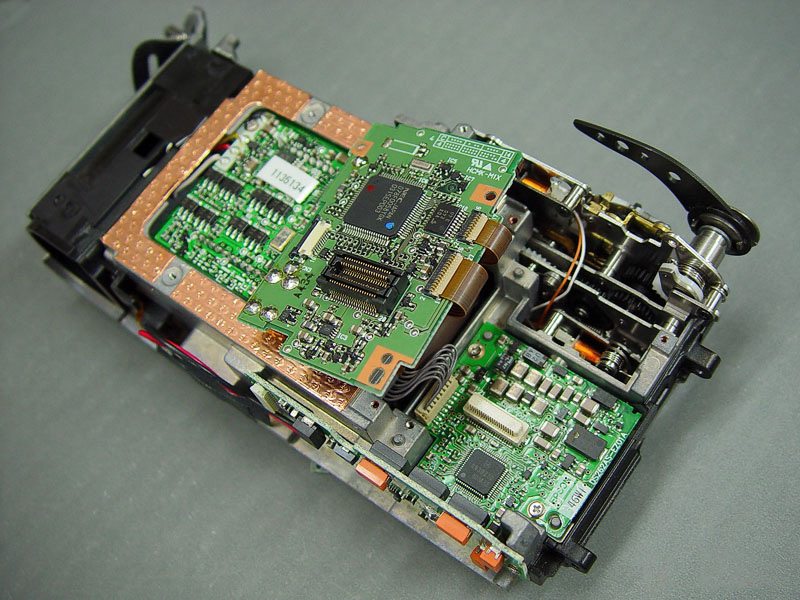

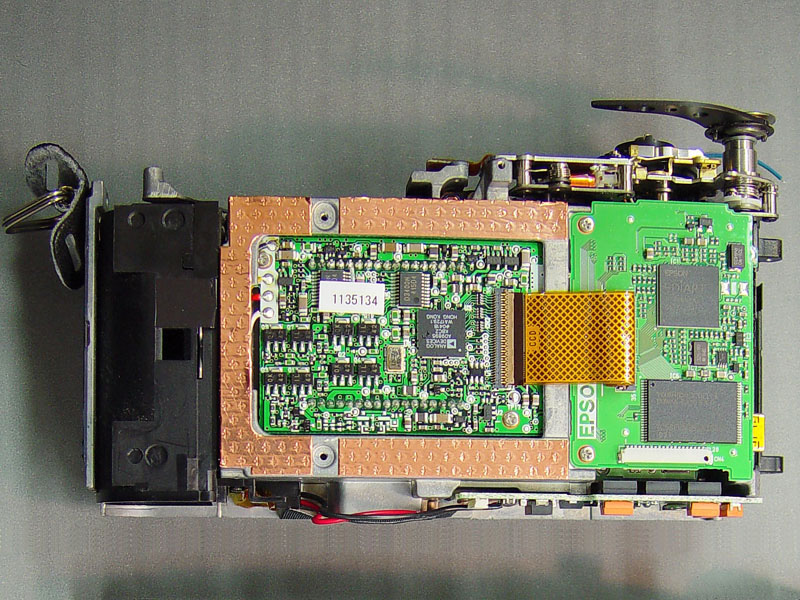

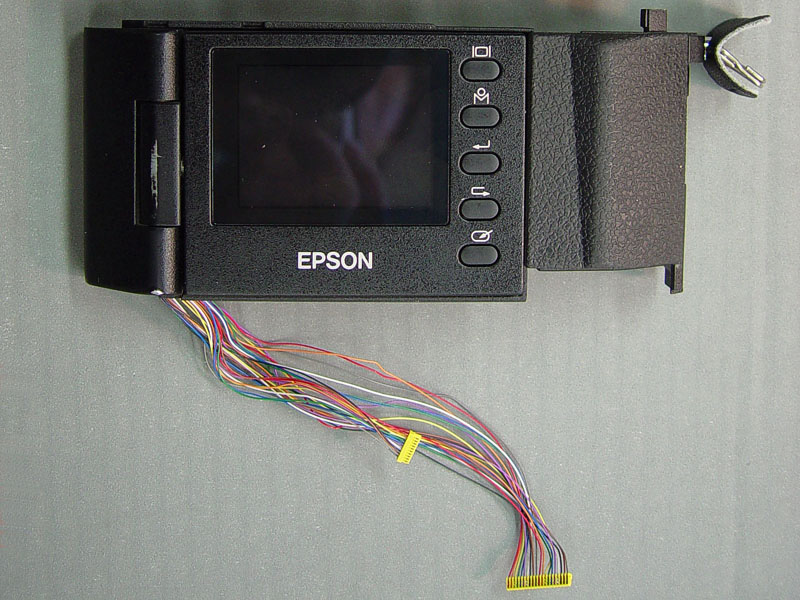

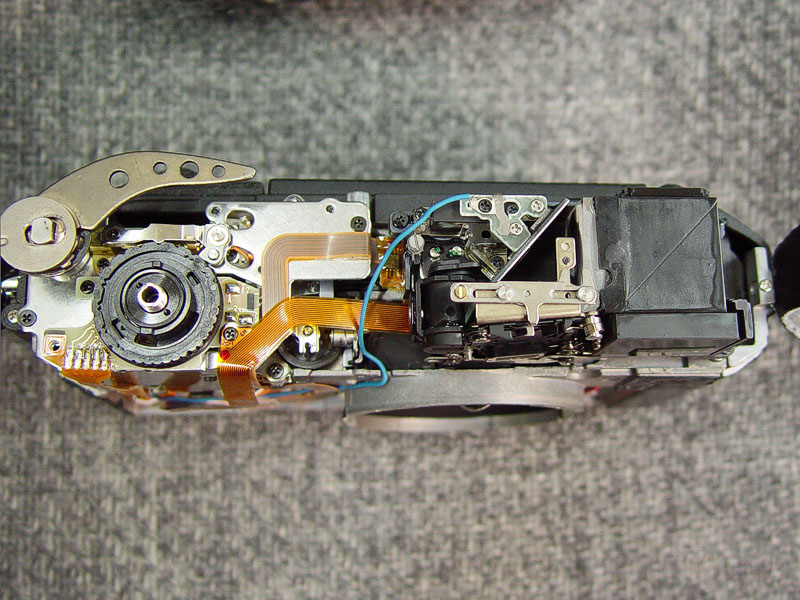

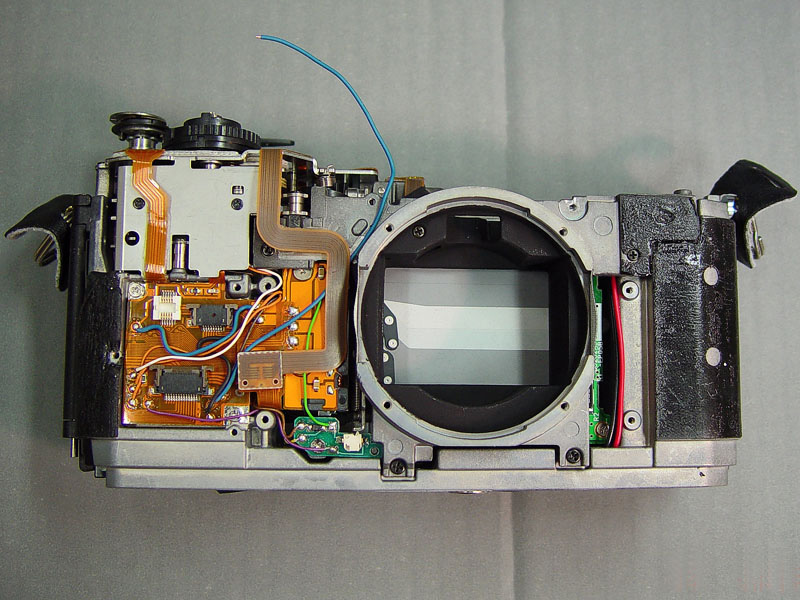

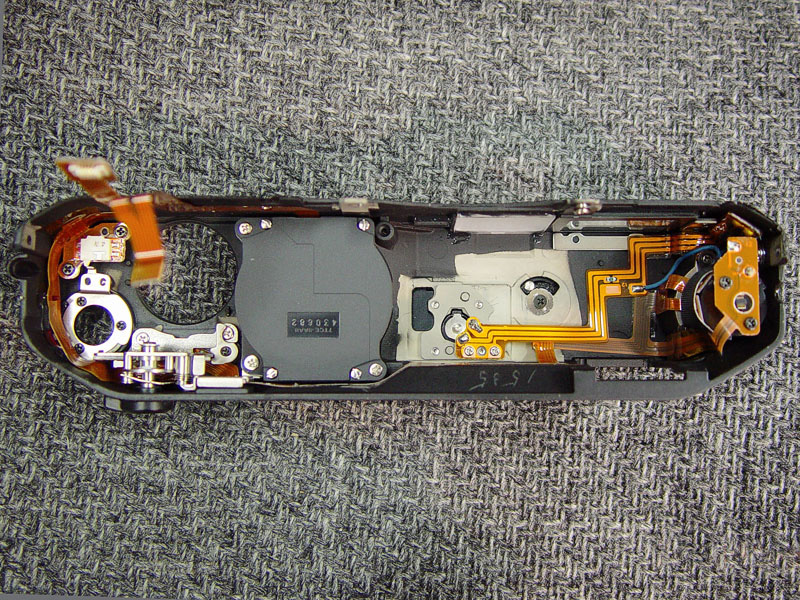

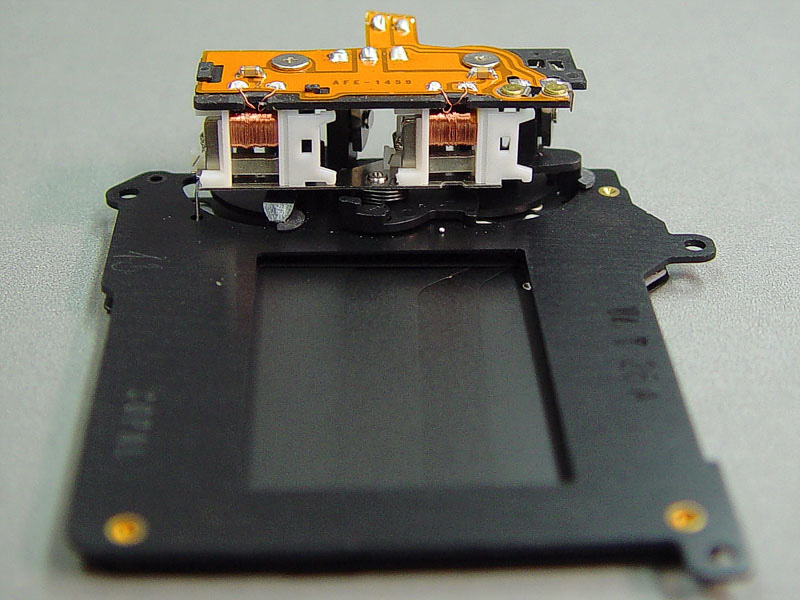

Epson R-D1 stripped Epson R-D1 stripped
Epson R-D1 stripped Epson R-D1 stripped
Epson R-D1 stripped Epson R-D1 stripped
Epson R-D1 stripped Epson R-D1 stripped
Epson R-D1 stripped Epson R-D1 stripped
Epson R-D1 stripped Epson R-D1 stripped
Epson R-D1 stripped Epson R-D1 stripped
Epson R-D1 stripped Epson R-D1 stripped
Epson R-D1 stripped Epson R-D1 stripped
Epson R-D1 stripped Epson R-D1 stripped
Epson R-D1 stripped Epson R-D1 stripped
Epson R-D1 stripped Epson R-D1 stripped

Acknowledgements

My thanks go to Jonas Yip, the owner of this camera, and Steve’s Camera Service Center, which took the photos and successfully repaired the camera.
